Although H beam and universal beam (I beam) look similar, their structural designs and load‑bearing performance vary. For high‑rise buildings, bridges, and large‑span structures, choosing the correct beam type is essential for safety and economy. This article explains their differences, advantages, and application principles to assist engineers and purchasers in making professional choices.

H beam and universal beam (I beam) are two of the most widely used structural beams in civil engineering and construction. Both are designed to support heavy loads and span large distances, but their unique cross-sectional designs result in different mechanical properties and applications. Whether you are designing a high-rise building, a bridge, or an industrial workshop, understanding the differences between these two beams is crucial for ensuring structural safety and cost-effectiveness.

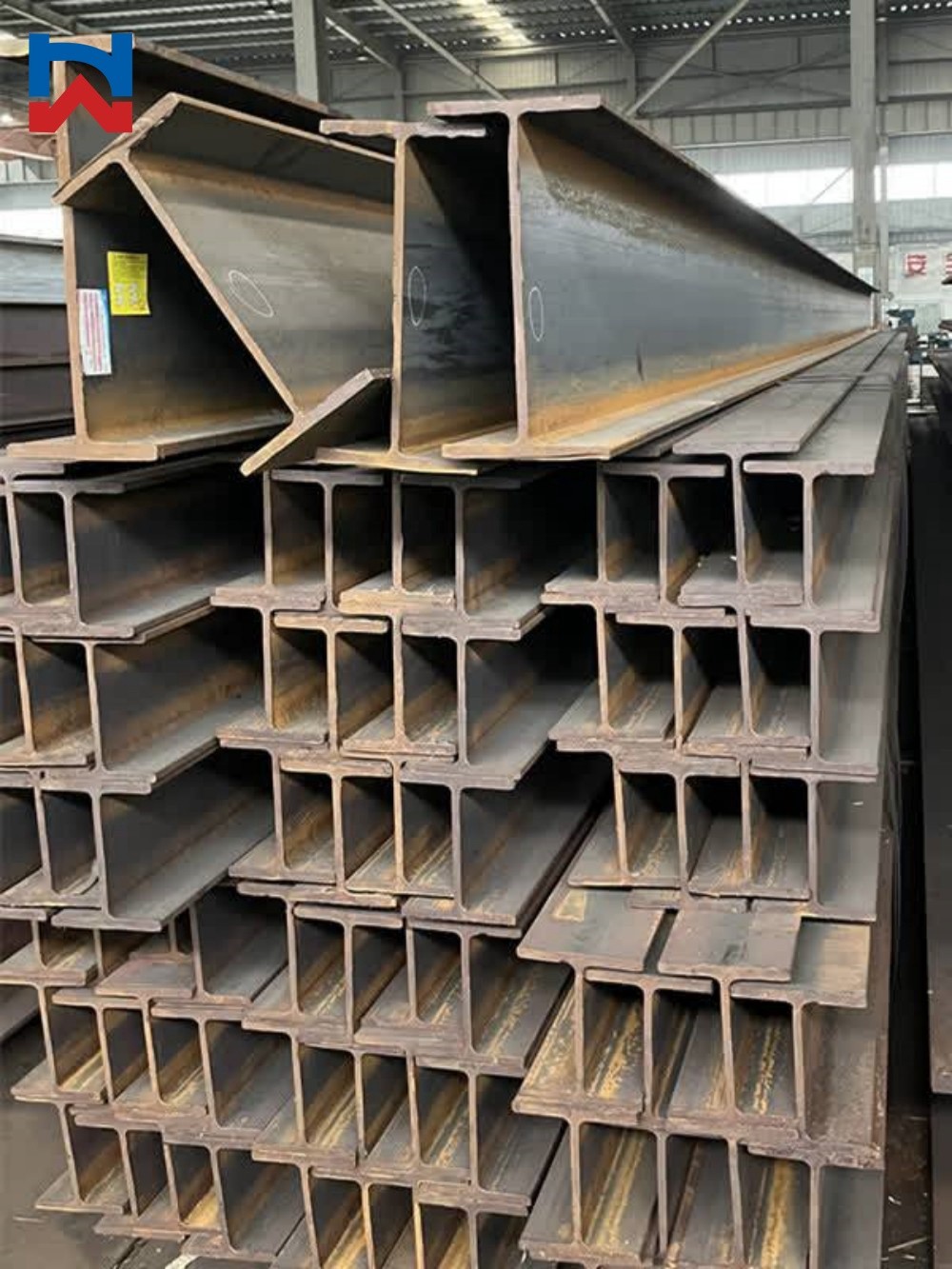

What is an H Beam?

H beam, as the name suggests, is a structural beam with an H-shaped cross-section. It consists of two parallel flanges (top and bottom) connected by a vertical web. The flanges are wider and thicker than the web, providing excellent load-bearing capacity and bending resistance. H beam is typically made by welding three steel plates together (two flanges and one web) or by hot rolling, depending on the size and application.

Key characteristics of H beam include:
   - High load-bearing capacity: The wide flanges distribute the load evenly, making H beam suitable for supporting heavy loads and spanning large distances.
   - Excellent bending resistance: The web and flanges work together to resist bending, reducing deformation under load.
   - Good torsional rigidity: The H-shaped design provides better torsional rigidity than I beam, making it suitable for applications where torsion is a concern.
   - Versatile: H beam is available in a wide range of sizes (web height from 100mm to 1000mm, flange width from 100mm to 500mm) and material grades (Q235, Q355, SS400, A36), making it suitable for various projects.
   - Easy to fabricate and install: H beam can be easily cut, drilled, and welded, allowing for flexible installation and customization.

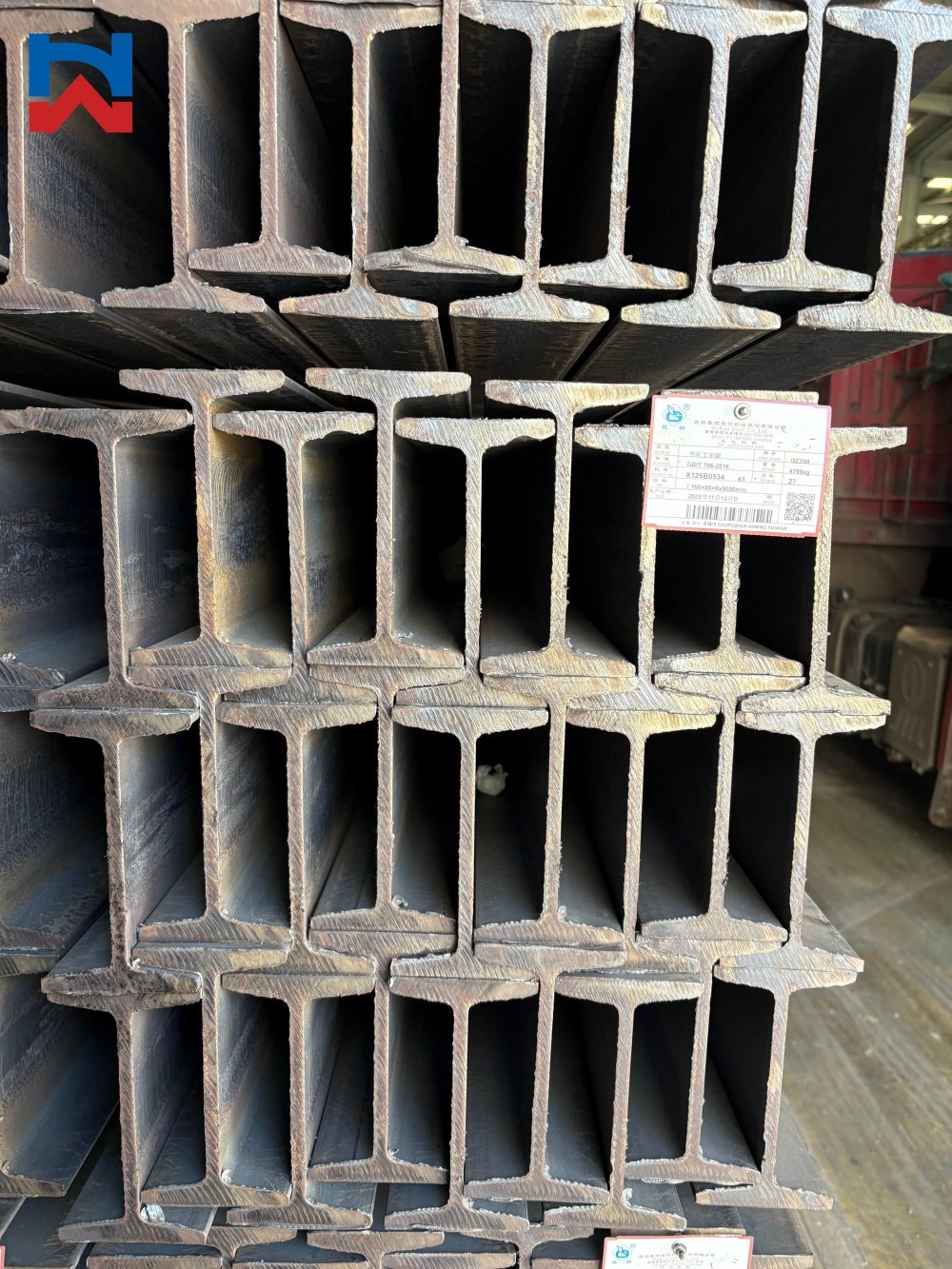

What is a Universal Beam (I Beam)?

Universal beam, also known as I beam or W beam (wide flange beam), is a structural beam with an I-shaped cross-section. It consists of two flanges (top and bottom) and a vertical web, similar to H beam, but with narrower flanges and a thicker web. Universal beam is typically hot-rolled, making it a cost-effective choice for many applications.

Key characteristics of universal beam include:
   - Cost-effective: Universal beam is cheaper to produce than H beam, making it a popular choice for budget-conscious projects.
   - Good bending resistance: The I-shaped design provides excellent bending resistance, making it suitable for supporting medium to heavy loads.
   - Lightweight: Compared to H beam of the same web height, universal beam is lighter, making it easier to transport and install.
   - Standardized sizes: Universal beam is available in standardized sizes, making it easy to source and replace.
   - Suitable for short to medium spans: Universal beam is ideal for spans between 6m and 15m, where high load-bearing capacity is required but cost is a concern.

H Beam vs. Universal Beam (I Beam): Key Differences

To help you choose the right beam for your project, we have compiled a detailed comparison of H beam and universal beam in terms of cross-sectional design, mechanical properties, applications, cost, and installation.

1. Cross-Sectional Design

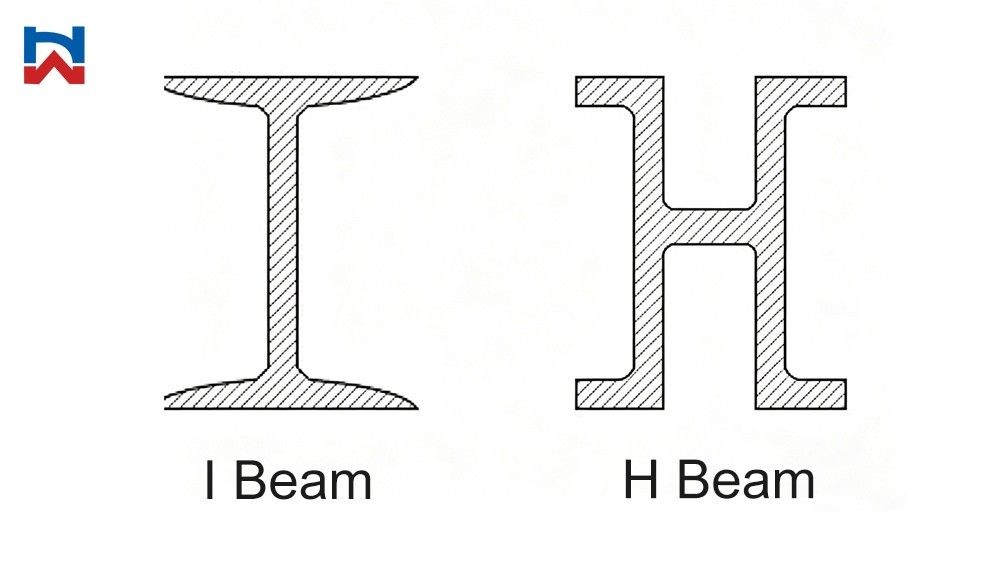

The most obvious difference between H beam and universal beam is their cross-sectional design. H beam has wider and thicker flanges, with a web that is thinner than the flanges. This design provides a higher moment of inertia and section modulus, resulting in better load-bearing capacity and bending resistance.

Universal beam, on the other hand, has narrower flanges and a thicker web. This design makes it lighter than H beam but reduces its load-bearing capacity and bending resistance. The I-shaped design of universal beam is more efficient for short to medium spans, where the load is distributed evenly.

2. Mechanical Properties

H beam offers superior load-bearing capacity and bending resistance compared to universal beam. This is because the wider flanges of H beam provide a larger surface area for distributing the load, and the thinner web reduces weight while maintaining rigidity. H beam also has better torsional rigidity, making it suitable for applications where the beam is subjected to torsion, such as bridge decks and industrial cranes.

Universal beam, while lighter, has lower load-bearing capacity and bending resistance than H beam. It is best suited for medium to heavy loads and short to medium spans, where cost is a priority. Universal beam is also more flexible than H beam, making it suitable for applications where slight deformation is acceptable.

3. Application Scenarios

H beam is commonly used in the following applications:
   - High-rise buildings: H beam is used as main beams and columns in high-rise buildings, where high load-bearing capacity and large spans are required.
   - Bridges: H beam is used in bridge decks, supports, and abutments, providing strong load-bearing capacity and torsional rigidity.
   - Industrial workshops and warehouses: H beam is used to construct large-span roofs and frames, supporting heavy equipment and materials.
   - Heavy machinery: H beam is used to fabricate the frames of heavy machinery, such as cranes and excavators.
   - Large-scale infrastructure projects: H beam is ideal for highways, railways, and port facilities, where high strength and durability are required.

Universal beam is commonly used in the following applications:
   - Medium-rise buildings: Universal beam is used as main beams and columns in medium-rise buildings, where cost is a concern and the spans are not too large.
   - Residential construction: Universal beam is used in residential buildings, such as apartments and houses, for floor beams and roof supports.
   - Small to medium industrial projects: Universal beam is used in small to medium industrial workshops and warehouses, where medium load-bearing capacity is required.
   - Renovation projects: Universal beam is often used in renovation projects, where lightweight and easy installation are important.
   - Short-span bridges: Universal beam is suitable for short-span bridges, such as pedestrian bridges and small road bridges.

4. Cost Comparison

Universal beam is generally cheaper than H beam. This is because universal beam is hot-rolled, which is a more cost-effective production method than welding three plates together (as is the case with H beam). For projects with a limited budget and medium load requirements, universal beam is a more affordable choice.

H beam, however, is more expensive due to its more complex production process and higher raw material requirements. However, its superior load-bearing capacity and durability make it a cost-effective choice for large-scale projects, where structural safety is a top priority. The higher initial cost of H beam is often offset by its long service life and reduced maintenance costs.

5. Installation and Fabrication

Both H beam and universal beam are easy to install and fabricate. They can be cut, drilled, and welded using standard tools, making them suitable for on-site fabrication. However, H beam is heavier than universal beam, which may require more equipment and labor for transportation and installation.

Universal beam, being lighter, is easier to transport and handle, reducing installation time and costs. It is also available in standardized sizes, making it easy to source and replace. HW Steel provides detailed installation guidelines for both H beam and universal beam, helping clients install them correctly and efficiently.

How to Choose Between H Beam and Universal Beam?

When choosing between H beam and universal beam, consider the following factors:

1. Load Requirements: If your project requires supporting heavy loads or spanning large distances (over 15m), H beam is the better choice. For medium loads and short to medium spans (6m-15m), universal beam is sufficient.

2. Project Size: For large-scale projects, such as high-rise buildings and bridges, H beam is necessary to ensure structural safety. For small to medium-scale projects, such as residential buildings and small industrial workshops, universal beam is a cost-effective choice.

3. Torsion Requirements: If your project involves torsion (e.g., bridge decks, cranes), H beam is the better choice due to its superior torsional rigidity.

4. Budget: If you have a limited budget, universal beam is the more affordable option. If structural safety and durability are more important than cost, H beam is worth the investment.

HW Steel’s H Beam and Universal Beam Solutions

HW Steel Group offers a comprehensive range of H beam and universal beam products, including hot-rolled and welded H beam, and hot-rolled universal beam. Our products meet international standards, such as ASTM, EN, and GB, ensuring high quality and reliability.

We provide bulk wholesale options for both H beam and universal beam, helping clients reduce procurement costs. Our team of experts can help you select the right beam for your project, based on your load requirements, project size, and budget. We also offer customization services, including custom sizes, thicknesses, and material grades, to meet the unique needs of each project.

In addition, HW Steel offers global delivery and professional technical support, ensuring that your project is completed on time and within budget. Whether you need H beam for a high-rise building or universal beam for a residential project, we have the products and expertise to help you succeed.

Conclusion

H beam and universal beam are both essential structural beams, but their unique designs and properties make them suitable for different applications. H beam is strong and durable, ideal for heavy loads and large spans, while universal beam is cost-effective and lightweight, suitable for medium loads and short to medium spans. By considering your project’s load requirements, size, budget, and torsion needs, you can select the right beam for your project.

HW Steel Group is committed to providing high-quality H beam, universal beam, and professional solutions to global clients. Contact us today to request a free quote, download our product catalog, or get expert advice on selecting the right structural beam for your project.
