Steel sheet pile is one of the most critical materials for modern civil engineering. It provides strong structural support, water resistance, and long‑term durability in projects such as coastal seawalls, bridge cofferdams, and deep foundation pits. This guide breaks down the main types, material grades, selection criteria, and application scenarios of steel sheet pile, helping engineers and project managers make accurate decisions during procurement.

Steel sheet pile, defined as a rolled steel section with interlocking edges, is designed to form a continuous barrier when driven into the ground. Its versatility makes it a staple in civil engineering, where it solves problems related to soil retention, water exclusion, and structural support. Unlike traditional concrete structures, steel sheet pile offers faster installation, reusability, and adaptability to various soil conditions—key advantages for large-scale projects with tight timelines and budget constraints.

### Main Types of Steel Sheet Pile

There are three primary types of steel sheet pile, each tailored to specific project needs. Understanding their differences is essential for selecting the right material for your application.

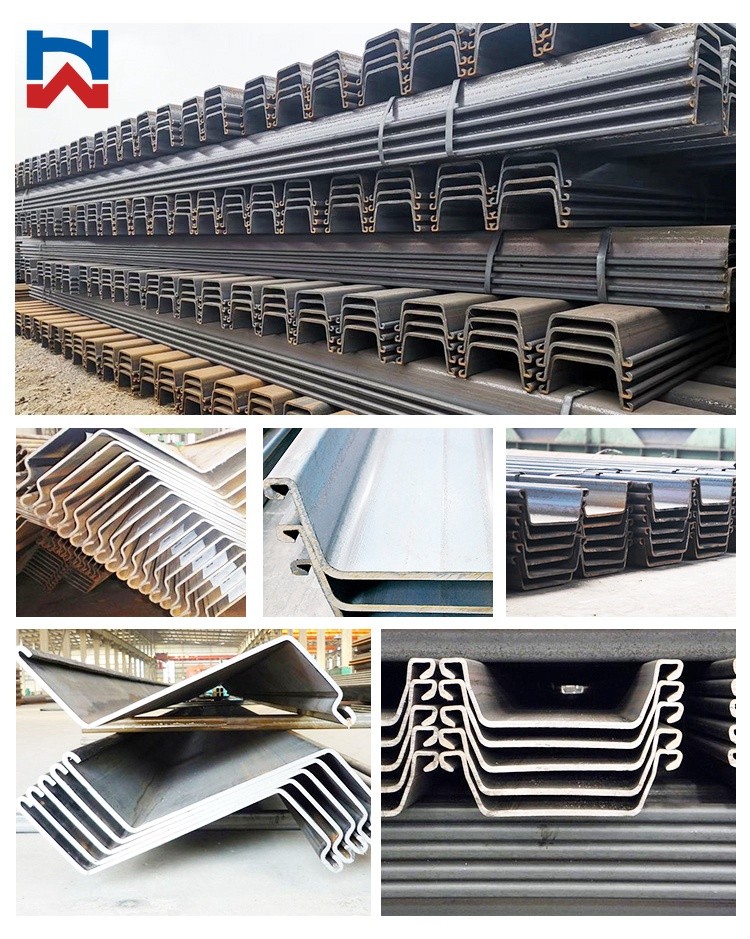

1. U-Shaped Steel Sheet Pile: This is the most common type, characterized by its U-like cross-section. It offers excellent bending resistance and is easy to interlock, making it ideal for cofferdams, foundation pits, and seawalls. U-shaped sheet pile is available in various widths and thicknesses, with material grades ranging from Q235 to Q355, ensuring compatibility with different load requirements. HW Steel supplies U-shaped sheet pile in both hot-rolled and cold-formed options, with customization available for special project needs.

2. Z-Shaped Steel Sheet Pile: Recognized by its Z-shaped cross-section, this type provides superior shear strength and load-bearing capacity compared to U-shaped piles. It is commonly used in deep foundation projects, bridge abutments, and large-scale retaining walls. Z-shaped sheet pile is particularly suitable for projects with high lateral pressure, such as coastal protection and industrial yard expansions. HW Steel’s Z-shaped sheet pile meets international standards, including ASTM A328 and EN 10248, ensuring reliability in harsh environments.

3. Straight Web Steel Sheet Pile: Also known as flat sheet pile, this type features a straight web and interlocking edges. It is primarily used for temporary structures, such as construction site enclosures and temporary cofferdams. Straight web sheet pile is lightweight, easy to install and remove, making it a cost-effective choice for short-term projects. HW Steel offers straight web sheet pile in various lengths, with options for galvanization to enhance corrosion resistance.

### Key Material Grades for Steel Sheet Pile

The performance of steel sheet pile is largely determined by its material grade. Different grades offer varying levels of strength, toughness, and corrosion resistance, making them suitable for different environments and applications.

- Q235 Steel Sheet Pile: This is a common carbon steel grade with a yield strength of 235MPa. It is suitable for general civil engineering projects, such as small-scale cofferdams and retaining walls, where high strength is not the primary requirement. Q235 sheet pile is cost-effective and easy to process, making it a popular choice for budget-conscious projects.

- Q355 Steel Sheet Pile: With a yield strength of 355MPa, Q355 is a high-strength carbon steel grade. It offers excellent bending resistance and durability, making it ideal for large-scale projects, such as coastal seawalls, deep foundation pits, and bridge cofferdams. Q355 sheet pile is also suitable for harsh environments, including marine and industrial areas.

- ASTM A328 Steel Sheet Pile: This is a standard grade for sheet pile in North America, with a minimum yield strength of 345MPa. It is widely used in infrastructure projects, such as highways, bridges, and port facilities, and meets strict quality standards for strength and durability.

- EN 10248 Steel Sheet Pile: This is a European standard grade, available in various sub-grades (e.g., S235, S355) to meet different project requirements. EN 10248 sheet pile is suitable for projects in the EU and other regions that follow European standards, ensuring compliance with local regulations.

### Application Scenarios of Steel Sheet Pile

Steel sheet pile is used in a wide range of civil engineering and construction projects, thanks to its versatility and durability. Below are the most common application scenarios:

1. Cofferdam Construction: Cofferdams are temporary structures used to exclude water from construction sites, allowing work to be done in a dry environment. Steel sheet pile is ideal for cofferdam construction due to its water resistance and quick installation. It is commonly used in bridge piers, port construction, and underwater foundation projects. For example, HW Steel supplied U-shaped steel sheet pile for a bridge cofferdam project in Southeast Asia, ensuring the project was completed on time and within budget.

2. Foundation Pit Support: In deep foundation projects, such as high-rise buildings and subway stations, steel sheet pile is used to retain soil and prevent collapse. It provides lateral support to the pit walls, ensuring the safety of workers and equipment. HW Steel’s Q355 Z-shaped sheet pile is often used for deep foundation pit support, thanks to its high load-bearing capacity and bending resistance.

3. Coastal Protection: Seawalls, breakwaters, and revetments are essential for protecting coastal areas from erosion and storm damage. Steel sheet pile offers excellent corrosion resistance (especially when galvanized) and durability, making it suitable for marine environments. HW Steel’s galvanized steel sheet pile has been used in coastal protection projects in the US and Middle East, providing long-term protection against saltwater corrosion.

4. Retaining Walls: Steel sheet pile is used to construct retaining walls for road embankments, industrial yards, and residential areas. It provides a cost-effective alternative to concrete retaining walls, with faster installation and lower maintenance costs. U-shaped sheet pile is particularly suitable for retaining walls, as its interlocking design ensures stability and water tightness.

5. Flood Control: In areas prone to flooding, steel sheet pile is used to construct temporary or permanent flood barriers. It can be quickly installed to protect homes, businesses, and infrastructure from flood damage. Straight web sheet pile is often used for temporary flood control, as it is easy to install and remove.

### Selection Criteria for Steel Sheet Pile

When selecting steel sheet pile for a project, several factors must be considered to ensure optimal performance and cost-effectiveness:

1. Project Requirements: The type of project (temporary vs. permanent), load requirements, and environmental conditions (e.g., marine, industrial, or residential) will determine the type and grade of sheet pile needed. For example, permanent projects in marine environments require high-corrosion-resistant sheet pile, such as galvanized or stainless steel.

2. Soil Conditions: The type of soil (e.g., clay, sand, rock) will affect the installation method and the required strength of the sheet pile. For example, in rocky soil, thicker sheet pile with higher bending resistance is needed to withstand the impact of driving.

3. Installation Method: Steel sheet pile can be installed using various methods, including vibratory driving, impact driving, and hydraulic pressing. The installation method will depend on the soil conditions and project requirements. HW Steel provides professional installation guidance to ensure the sheet pile is installed correctly and efficiently.

4. Cost: The cost of steel sheet pile varies depending on the type, grade, and size. It is important to balance cost with performance to ensure the project is completed within budget. HW Steel offers bulk wholesale pricing for steel sheet pile, helping clients reduce procurement costs.

### HW Steel’s Steel Sheet Pile Solutions

As a leading steel supplier in South China, HW Steel Group offers a comprehensive range of steel sheet pile products, including U-shaped, Z-shaped, and straight web sheet pile. Our products meet international standards, including ASTM, EN, and GB, ensuring high quality and reliability.

We provide customized solutions to meet the unique needs of each project, including custom sizes, thicknesses, and surface treatments (e.g., galvanization, painting). Our team of experts can help you select the right type and grade of sheet pile for your project, and provide professional installation guidance to ensure optimal performance.

In addition, HW Steel offers global delivery and bulk wholesale options, making it easy for clients to procure steel sheet pile for projects around the world. We have a mature supply chain and logistics network, ensuring on-time delivery and competitive pricing.

### Conclusion

Steel sheet pile is a versatile and essential material for modern civil engineering projects. By understanding the different types, material grades, and application scenarios, engineers and project managers can select the right sheet pile for their project, ensuring safety, durability, and cost-effectiveness. HW Steel Group is committed to providing high-quality steel sheet pile and professional solutions to global clients, helping them complete their projects successfully.

If you are looking for a reliable steel sheet pile supplier, contact HW Steel Group today. We offer free quotes, product catalogs, and technical support to help you make the right procurement decision. Request a bulk quote now and experience our high-quality products and services.
