316L Stainless Steel Wire

Low-carbon molybdenum-alloyed 316L stainless steel wire delivers exceptional chloride & acid corrosion resistance, free of weld intergranular decay. Cold-drawn coil wire fits marine filtration, medical hardware & chemical springs, factory bulk export for coastal and corrosive industrial manufacturers worldwide.

+ 86 18042817705

sales06@hyvaplant.com

Get Free Quote Now

Product Parameters

Product Name	316L Stainless Steel Wire
Standard	ASTM A580, UNS S31603
Material	316L
Technique	Cold drawn, Hot rolled, Cold rolled and Others.
Common Size Specs	Diameter range: 0.2mm – 5.5mm \| Hot-selling: 0.3mm, 0.8mm, 1.2mm, 2.0mm, 3.0mm Standard coil weight: 50kg / 100kg; custom straight cut wire available
Surface Treatment	Bright Annealed BA Finish; Pickled Matte Finish; Soap lubricated drawing surface; Anti-rust oil protective coating
Available Material Tempers	Soft Annealed; Full Hard Temper
Origin	China
Price Terms	EXW, FOB, CIF, CRF, CNF or others
Payment Term	TT, LC, Cash, Paypal, DP, DA, Western Union or Others.
Packaging	Bundle, PVC Bag, Nylon Belt, Cable Tie, Standard export seaworthy package or as Request.
Processing Service	Bending, Welding, Decoiling, Punching, Cutting and Others.
Tolerance	±1%
Exported to	UAE, Saudi Arabia; Germany, Poland; Vietnam, Malaysia
Core Strengths	Ultra-low carbon formula eliminates grain corrosion after welding without heat treatment Molybdenum component resists saltwater, chloride and weak acid pitting far better than 304 Stable ductility and uniform roundness reduces breakage during automatic mesh weaving Biocompatible composition meets sanitary standards for medical implant accessories Consistent tensile strength maintains elasticity under coastal humid & corrosive working conditions
Main Applications	Marine filter mesh, medical precision springs, chemical equipment binding wire, coastal corrosion-resistant hardware, pharmaceutical filtration components, offshore rig fastener raw stock

If you are looking for professional steel wire suppliers from China, Haiwo is your great choice! Contact us to get latest price list now!

Composition of Stainless Steel

Steel is an alloy of iron and carbon. Stainless steels are steels containing at least 10.5% chromium, less than 1.2% carbon and other alloying elements. Stainless steel’s corrosion resistance and

mechanical properties can be further enhanced by adding other elements, such as nickel, molybdenum, titanium, niobium, manganese, etc.

Grade	C	Si	Mn	P	S	Cr	Ni	Mo	N	Cu
201	≤0.15	≤0.75	5.5~7.5	≤0.060	≤0.03	16.00~18.00	3.5~5.5	-	-	0.08
202	≤0.15	≤1.00	7.5~10.00	≤0.060	≤0.03	17.00~19.00	4.0~6.0	-	≤0.25
301	≤0.15	≤1.00	≤2.00	≤0.045	≤0.03	16.00~18.00	6.00~8.00	-
302	≤0.15	≤1.00	≤2.00	≤0.035	≤0.03	17.00~19.00	8.00~10.00	-
304	≤0.07	≤1.00	≤2.00	≤0.045	≤0.03	18.00~20.00	8.00~10.50	-
304L	≤0.030	≤1.00	≤2.00	≤0.045	≤0.03	18.00~20.00	9.00~13.00	-
310S	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	24.00~26.00	19.00~22.00	-
316	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	16.00~18.00	10.00~14.00	2.00~3.00
316L	≤0.03	≤1.00	≤2.00	≤0.045	≤0.03	16.00~18.00	12.00~15.00	2.00~3.00
321	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	17.00~19.00	9.00~13.00	-
430	≤0.12	≤0.75	≤1.00	≤0.040	≤0.03	16.00~18.00		-
2205	≤0.03	≤1.00	≤2.00	≤0.030	≤0.015	22.00~23.00	4.5~6.5	2.5~3.5
2507	≤0.03	≤0.08	≤1.20	≤0.035	≤0.015	24.00~26.00	6.00~8.00	3.0~5.0
904L	≤0.02	≤1.00	≤2.00	≤0.045	≤0.035	19.00~23.00	23.00~28.00	4.0~5.0		1.0~2.0
INCONEL028	≤0.03	≤1.00	≤2.50	≤0.030	≤0.030	≤28.0	≤34.0	≤4.0		≤1.4
MONEL400	≤0.30	≤0.5	≤2.00	-	≤0.024	-	≥63.0	-		≤34.0
INCONEL800	≤0.10	≤1.00	≤1.50	-	≤0.015	≤23.0	≤35	4.0~5.0	-	≤0.75

Product Showcase

Product Application

Packaging and transportation

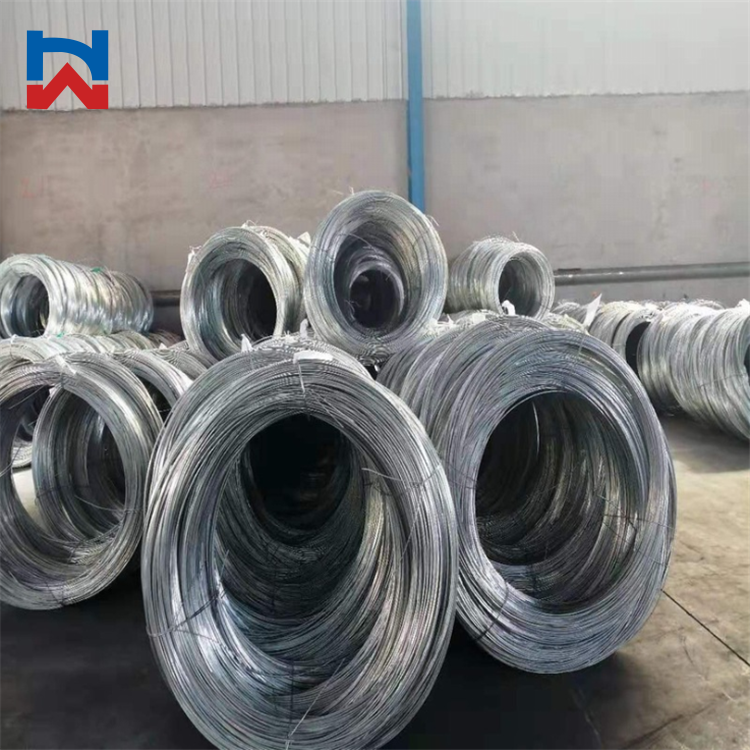

Factory Display
