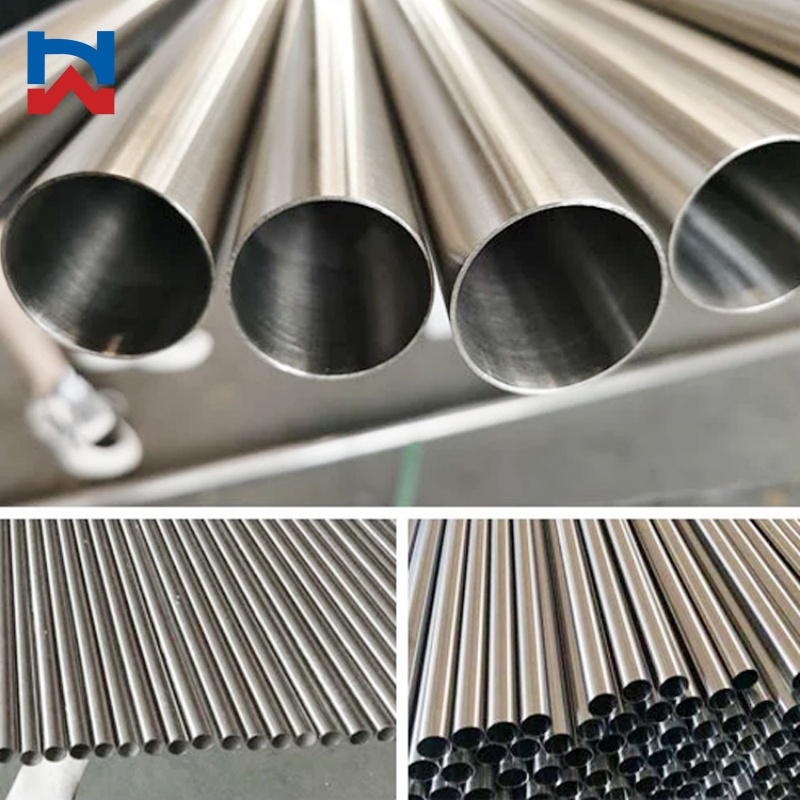

2205 Duplex Stainless Steel Pipe

2205 duplex stainless steel pipe features balanced austenite-ferrite dual-phase structure, delivering doubled tensile strength and superior chloride & seawater corrosion resistance vs 316L. It serves high-pressure piping for oil, marine desalination and chemical facilities, a top-choice high-value material for large-scale Middle East industrial engineering projects.

+ 86 18042817705

sales06@hyvaplant.com

Get Free Quote Now

Product Parameters

Product Name	2205 Duplex Stainless Steel Pipe
Standard	ASTM A790, ASTM A789, UNS S32205 / S31803
Material	2205 Duplex
Technique	Cold drawn, Hot rolled, Cold rolled and Others.
Common Size Specs	Outer diameter: 6mm–914mm; Wall thickness: 0.5mm–50mm (SCH5S–XXS) Hot-selling sizes: DN50, DN100, DN150, DN200 seamless pipe Standard length: 6m / 12m, custom cutting available Type: Seamless / welded duplex pipe
Surface Treatment	Pickled & passivated industrial finish, mechanical polished bright surface, bead-blasted anti-corrosion finish, anti-rust protective packaging
Available Material Tempers	Solution annealed (standard delivery state for stable dual-phase microstructure)
Certifications	ISO9001, SGS, RoHS, EN10204 3.1 MTC, NACE MR0175, PED pressure equipment certification
Origin	China
Price Terms	EXW, FOB, CIF, CRF, CNF or others
Payment Term	TT, LC, Cash, Paypal, DP, DA, Western Union or Others.
Packaging	Bundle, PVC Bag, Nylon Belt, Cable Tie, Standard export seaworthy package or as Request.
Processing Service	Bending, Welding, Decoiling, Punching, Cutting and Others.
Tolerance	±1%
Exported to	Saudi Arabia, UAE, Kuwait; Norway, Germany; Australia
Core Strengths	Dual-phase alloy yields twice the strength of conventional 300-series stainless, allows thinner wall design to cut project cost High PREN value effectively blocks chloride pitting & stress corrosion cracking in seawater/sour oil environments Contains molybdenum & nitrogen to resist sulfur and weak acid erosion for chemical processing Stable mechanical performance under long-term high-pressure cyclic operation Compliant with NACE sour service standards, long service life to lower overall project maintenance expense
Main Applications	Oil & gas flow pipelines, seawater desalination piping, chemical high-pressure process tubes, offshore platform fluid lines, heat exchanger tubing, sour well transport pipelines

If you are in market for high quality ss pipe products, welcome to contact us for best price now!

Composition of Stainless Steel

Steel is an alloy of iron and carbon. Stainless steels are steels containing at least 10.5% chromium, less than 1.2% carbon and other alloying elements. Stainless steel’s corrosion resistance and

mechanical properties can be further enhanced by adding other elements, such as nickel, molybdenum, titanium, niobium, manganese, etc.

Grade	C	Si	Mn	P	S	Cr	Ni	Mo	N	Cu
201	≤0.15	≤0.75	5.5~7.5	≤0.060	≤0.03	16.00~18.00	3.5~5.5	-	-	0.08
202	≤0.15	≤1.00	7.5~10.00	≤0.060	≤0.03	17.00~19.00	4.0~6.0	-	≤0.25
301	≤0.15	≤1.00	≤2.00	≤0.045	≤0.03	16.00~18.00	6.00~8.00	-
302	≤0.15	≤1.00	≤2.00	≤0.035	≤0.03	17.00~19.00	8.00~10.00	-
304	≤0.07	≤1.00	≤2.00	≤0.045	≤0.03	18.00~20.00	8.00~10.50	-
304L	≤0.030	≤1.00	≤2.00	≤0.045	≤0.03	18.00~20.00	9.00~13.00	-
310S	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	24.00~26.00	19.00~22.00	-
316	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	16.00~18.00	10.00~14.00	2.00~3.00
316L	≤0.03	≤1.00	≤2.00	≤0.045	≤0.03	16.00~18.00	12.00~15.00	2.00~3.00
321	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	17.00~19.00	9.00~13.00	-
430	≤0.12	≤0.75	≤1.00	≤0.040	≤0.03	16.00~18.00		-
2205	≤0.03	≤1.00	≤2.00	≤0.030	≤0.015	22.00~23.00	4.5~6.5	2.5~3.5
2507	≤0.03	≤0.08	≤1.20	≤0.035	≤0.015	24.00~26.00	6.00~8.00	3.0~5.0
904L	≤0.02	≤1.00	≤2.00	≤0.045	≤0.035	19.00~23.00	23.00~28.00	4.0~5.0		1.0~2.0
INCONEL028	≤0.03	≤1.00	≤2.50	≤0.030	≤0.030	≤28.0	≤34.0	≤4.0		≤1.4
MONEL400	≤0.30	≤0.5	≤2.00	-	≤0.024	-	≥63.0	-		≤34.0
INCONEL800	≤0.10	≤1.00	≤1.50	-	≤0.015	≤23.0	≤35	4.0~5.0	-	≤0.75

Product Showcase

Product Application

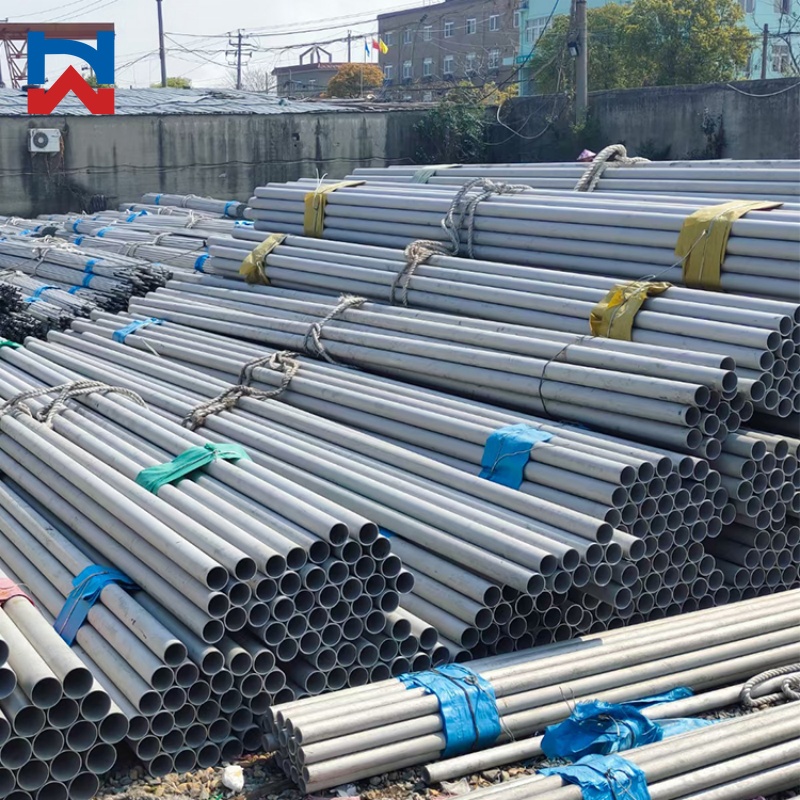

Packaging and transportation

Factory Display

FAQ

1.What kind of customer service do you provide?

We provide comprehensive customer service, including basic design, procurement of supporting facilities, and options for dispatching installation guides.

2.What are the customer evaluations of your company?

We are proud to consistently receive five-star reviews from our customers, which demonstrates our commitment to quality and service.

3.What is your quality inspection process like?

Our strict quality inspection process ensures that every product meets the highest standards of excellence. From raw materials to finished products, every stage is carefully inspected to ensure excellent quality.

4.Do you accept container loading inspection?

Welcome to dispatch inspectors, not only for container loading, but also at any time during production.

5.What is the delivery time?

The delivery time depends on the quantity of orders. Usually, the delivery time to the nearest port in China is 15-30 days after receiving the deposit.

6. How to obtain a project quotation?

You can contact us 24 * 7 via email, phone, WhatsApp, WeChat, etc. You will receive a reply within 4 hours.
