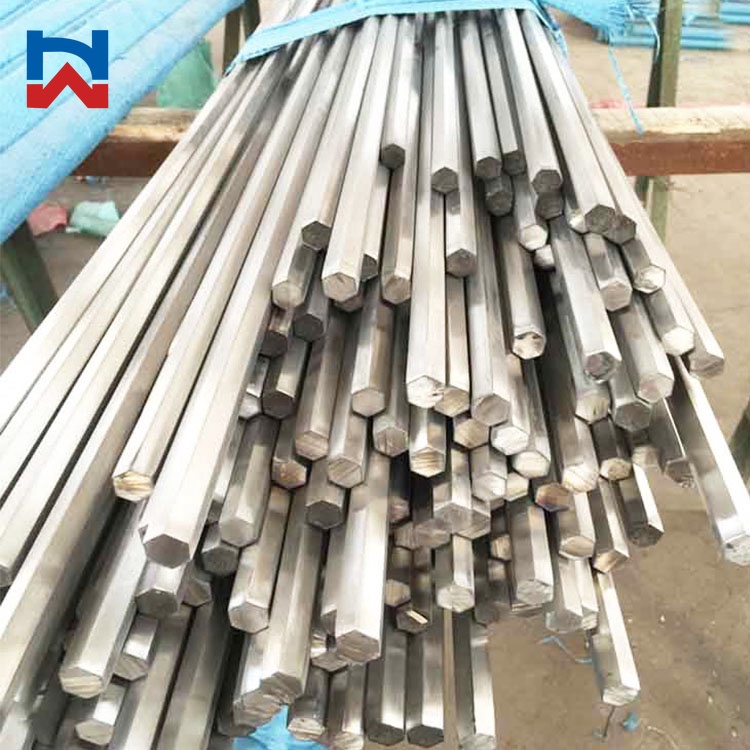

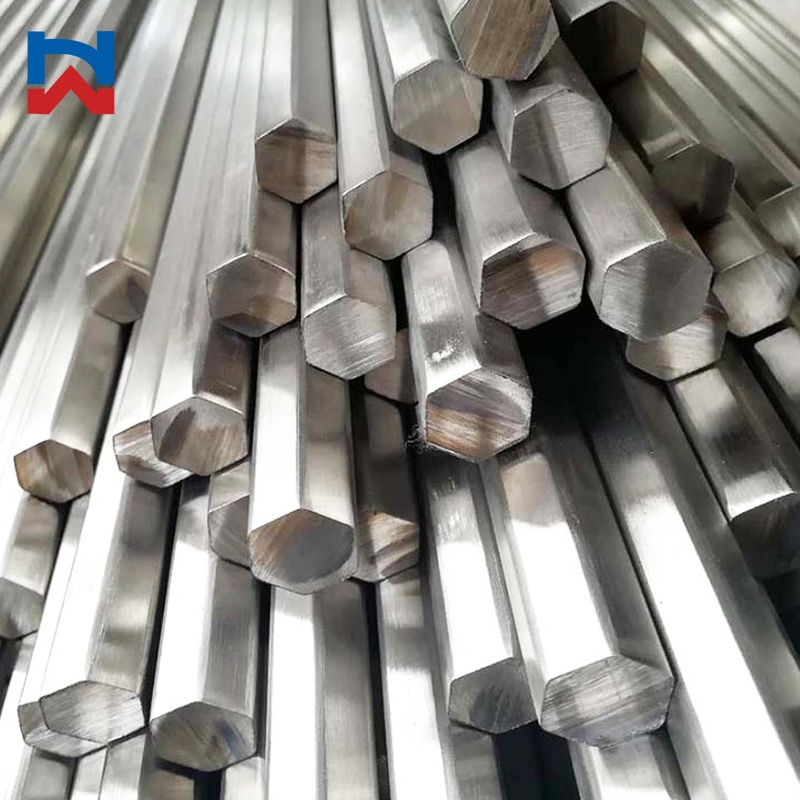

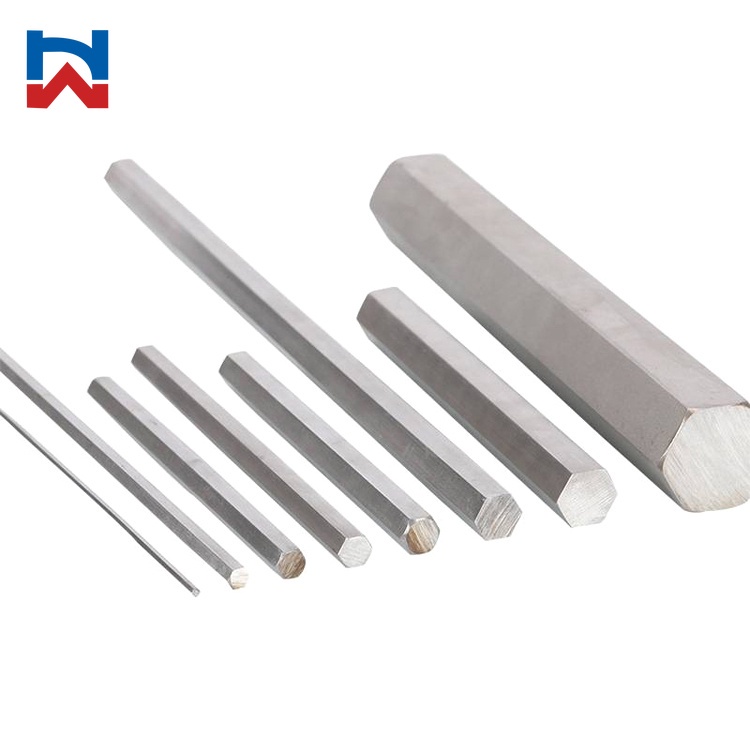

316 / 316L Stainless Steel Hexagon Bar

316 & low-carbon 316L stainless steel hex bar features molybdenum alloy for superior chloride anti-corrosion. Cold-drawn hexagonal blanks cut secondary threading work; 316L avoids weld decay for corrosive industrial bulk manufacturing.

+ 86 18042817705

sales06@hyvaplant.com

Get Free Quote Now

Product Parameters

Product Name	316 / 316L Stainless Steel Hexagon Bar
Standard	ASTM A276, UNS S31600 / S31603
Material	316 / 316L
Technique	Cold drawn, Hot rolled, Cold rolled and Others.
Common Size Specs	Hex opposite side size: 6mm–60mm \| Hot-selling: 10mm,16mm,22mm,30mm,40mm Standard length: 6000mm; custom cut fixed lengths available Craft: Cold drawn bright hex bar / hot rolled rough hex bar
Surface Treatment	Cold drawn bright finish; Hot rolled pickled matte finish; Ground polished finish; Anti-rust oil coating.
Available Material Tempers	Solution Annealed Soft State; Cold Worked Temper
Origin	China
Price Terms	EXW, FOB, CIF, CRF, CNF or others
Payment Term	TT, LC, Cash, Paypal, DP, DA, Western Union or Others.
Packaging	Bundle, PVC Bag, Nylon Belt, Cable Tie, Standard export seaworthy package or as Request.
Processing Service	Bending, Welding, Decoiling, Punching, Cutting and Others.
Tolerance	±1%
MOQ	5 tons
Exported to	UAE, Saudi Arabia; Germany, Poland; Malaysia, Vietnam
Core Strengths	Molybdenum formula outperforms 304 against saltwater & acid pitting corrosion 316L ultra-low carbon eliminates intergranular corrosion after welding Standard hexagonal shape cuts threading & CNC machining production steps Tight dimensional tolerance reduces material waste during mass fabrication Non-magnetic austenitic structure stable for medical & coastal equipment
Main Applications	Marine valve stems, chemical pump fittings, pharmaceutical machinery parts, offshore hardware, medical orthopedic blanks, desalination threaded fastener raw stock

If you are looking for China Factory ss rod suppliers, Haiwo is your great choice for long-term business cooperation. Inquire us now!

Composition of Stainless Steel

Steel is an alloy of iron and carbon. Stainless steels are steels containing at least 10.5% chromium, less than 1.2% carbon and other alloying elements. Stainless steel’s corrosion resistance and

mechanical properties can be further enhanced by adding other elements, such as nickel, molybdenum, titanium, niobium, manganese, etc.

Grade	C	Si	Mn	P	S	Cr	Ni	Mo	N	Cu
201	≤0.15	≤0.75	5.5~7.5	≤0.060	≤0.03	16.00~18.00	3.5~5.5	-	-	0.08
202	≤0.15	≤1.00	7.5~10.00	≤0.060	≤0.03	17.00~19.00	4.0~6.0	-	≤0.25
301	≤0.15	≤1.00	≤2.00	≤0.045	≤0.03	16.00~18.00	6.00~8.00	-
302	≤0.15	≤1.00	≤2.00	≤0.035	≤0.03	17.00~19.00	8.00~10.00	-
304	≤0.07	≤1.00	≤2.00	≤0.045	≤0.03	18.00~20.00	8.00~10.50	-
304L	≤0.030	≤1.00	≤2.00	≤0.045	≤0.03	18.00~20.00	9.00~13.00	-
310S	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	24.00~26.00	19.00~22.00	-
316	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	16.00~18.00	10.00~14.00	2.00~3.00
316L	≤0.03	≤1.00	≤2.00	≤0.045	≤0.03	16.00~18.00	12.00~15.00	2.00~3.00
321	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	17.00~19.00	9.00~13.00	-
430	≤0.12	≤0.75	≤1.00	≤0.040	≤0.03	16.00~18.00		-
2205	≤0.03	≤1.00	≤2.00	≤0.030	≤0.015	22.00~23.00	4.5~6.5	2.5~3.5
2507	≤0.03	≤0.08	≤1.20	≤0.035	≤0.015	24.00~26.00	6.00~8.00	3.0~5.0
904L	≤0.02	≤1.00	≤2.00	≤0.045	≤0.035	19.00~23.00	23.00~28.00	4.0~5.0		1.0~2.0
INCONEL028	≤0.03	≤1.00	≤2.50	≤0.030	≤0.030	≤28.0	≤34.0	≤4.0		≤1.4
MONEL400	≤0.30	≤0.5	≤2.00	-	≤0.024	-	≥63.0	-		≤34.0
INCONEL800	≤0.10	≤1.00	≤1.50	-	≤0.015	≤23.0	≤35	4.0~5.0	-	≤0.75
